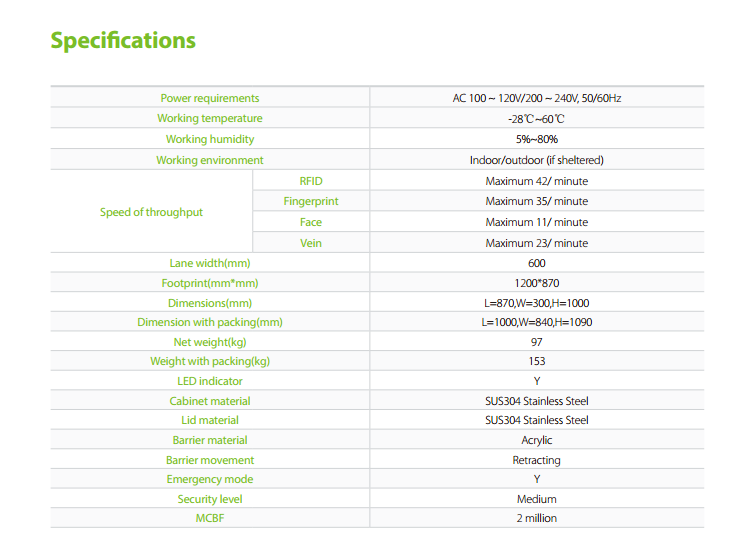

The ZKTeco FBL1000 single lane flap barrier turnstile is an elegant cost-effective entrance control system designed for high-traffic volume. The FBL1000 is a single lane flap barrier turnstile series designed for smooth and silent operation and draws very little power. It’s made of stainless steel which makes FBL1000 highly durable. FBL1000 barriers are normally held in a locked position, thus denying access to the secured side. Upon FBL1000’s reader (RFID and/ or fingerprint) positively recognizing a user’s valid access card or fingerprint, its barriers retract upward automatically, thus allowing users passage to the secured side.
During emergencies the barriers automatically retract upward, thereby ensuring users FAST unencumbered exit to safety. A battery for power outage safety can be installed for retracting the barrier automatically. FBL1000 provides both security and convenient space, all in a very durable and elegant compact design.

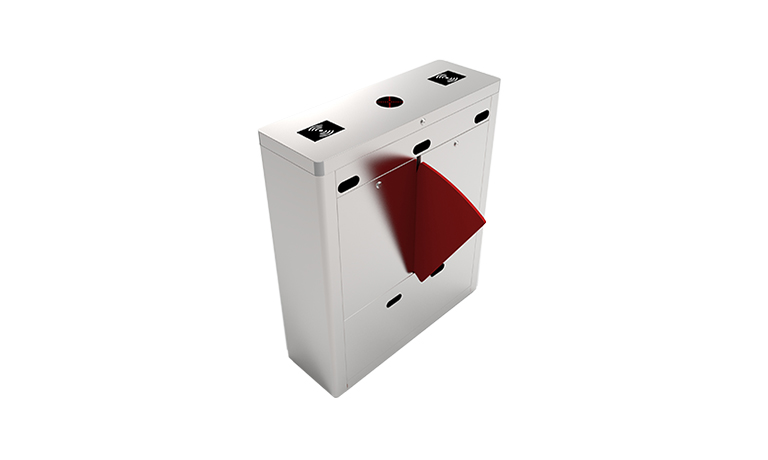

The FBL1200 is a Flap Barrier Turnstile for additional Lane series designed for smooth and silent operation and draws very little power. It’s made of stainless steel which makes FBL1200 highly durable. FBL1200 barriers are normally held in a locked position, thus denying access to the secured side. Upon FBL1200’s reader (RFID and/or fingerprint) positively recognizing a user’s valid access card or fingerprint, its barriers retract upward automatically, thus allowing users passage to the secured side. During emergencies the barriers automatically retract upward, thereby ensuring users FAST unencumbered exit to safety. A battery for power outage safety can be installed for retracting the barrier automatically. FBL1200 provides both security and convenient space, all in a very durable and elegant compact design.

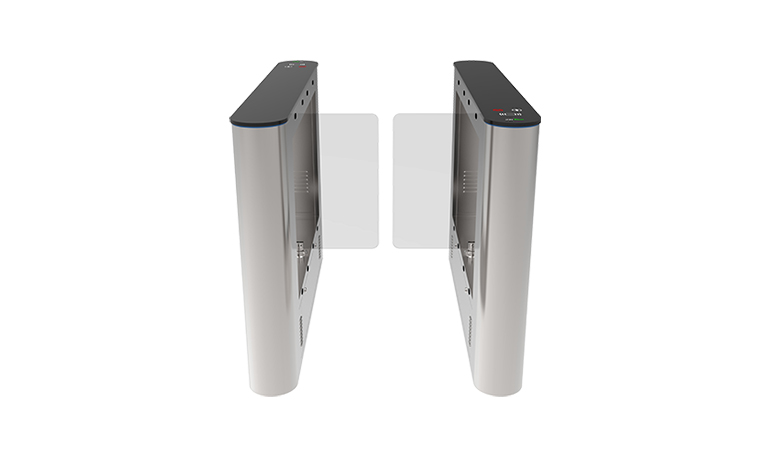

The ZKTeco SBTL5000 single lane swing barrier turnstile is an elegant highperformance entrance control system designed for high-traffic volume.
| Power requirements | AC 100 ~ 120V/200 ~ 240V, 50/60Hz | |
| Working temperature | -28℃~60℃ | |
| Working humidity | 20%-95% (Non-condensing) | |
| Working environment | Indoor | |
| Speed of throughput | RFID | Maximum 30/ minute |
| Fingerprint | Maximum 25/ minute | |
| Lane width(mm) | 650 | |
| Footprint(mm*mm) | 1400*1010 | |
| Dimensions(mm) | L=1400, W=180, H=1000 | |
| Dimension with packing(mm) | L=1500, W=260, H=1100 | |
| Net weight(kg) | 120 | |
| Weight with packing(kg) | 150 | |
| Cabinet material | SUS304 Stainless Steel | |
| Lid material | Tempered Glass | |
| Barrier material | Tempered Glass | |
| Barrier movement | Swing | |
| Emergency mode | Y | |
| Security level | Medium | |
| MCBF | 2 million | |
The ZKTeco SBTL5200 swing barrier turnstile for additional lane is an elegant cost-effective entrance control system designed for high-traffic volume. The SBTL5200 series should work together with SBTL5000 series to build multiple lanes.
| Power requirements | AC 100 ~ 120V/200 ~ 240V, 50/60Hz | |
| Working temperature | -28℃~60℃ | |
| Working humidity | 20%-95% (Non-condensing) | |
| Working environment | Indoor | |
| Speed of throughput | RFID | Maximum 30/ minute |
| Fingerprint | Maximum 25/ minute | |
| Lane width(mm) | 650 | |
| Footprint(mm*mm) | 1400*780 | |
| Dimensions(mm) | L=1400, W=180, H=1000 | |
| Dimension with packing(mm) | L=1500, W=260, H=1100 | |
| Net weight(kg) | 72 | |
| Weight with packing(kg) | 87 | |
| Cabinet material | SUS304 Stainless Steel | |
| Lid material | Tempered Glass | |
| Barrier material | Tempered Glass | |
| Barrier movement | Swing | |
| Emergency mode | Y | |
| Security level | Medium | |
| MCBF | 2 million | |
Tripod turnstiles are compact and cost-effective entrance solutions. Designing for smooth and silent operation, reducing power consumption, wear and tear. It is suitable for areas with a high traffic.
The TS1000 series, our stainless steel compact version,offer high operating reliability in a small casework, ideal for sites where space is an issue. By receiving a signal from the access control system, or pushing button, it allows the entry of one person in a time. Entering into different directions are electronically controlled. Default mode is to lock the mechanism until a valid authorization signal is received. IIf you want to set one side free, you can adjust the mechanism. In case of emergency, the horizontal arm will drop to allow free passage.
| Technical Specifications | |
|---|---|
Power Supply |
AC 220V/110V, 50/60Hz |
Operating Temperature |
-28 °C- 60 °C |
Operating Humidity |
5%-85% |
Working Environment |
Indoor/Outdoor(shelter) |
Rated Power |
60W |
Flow Rate |
25- 48 passage/minute |
Casework Material |
SUS304 |
Pictogram Indication |
Yes |
Control System |
Input controlled by dry contact |
Emergency Button Input |
Yes |
Dimension |
52×98×28(CM) + arm length 50CM |
Package Dimension |
60×108×38(CM) |
Net Weight |
34KG |
Gross Weight with Package |
40KG |
Optional Function |
Alternative material or shape, third-party access control integration, ticket system integration, passage counter |
Tripod turnstiles are compact and cost-effective entrance solutions. Designing for smooth and silent operation, reducing power consumption, wear and tear. It is suitable for areas with a high traffic.
The TS1200 series, our stainless steel compact version, offer high operating reliability in a small casework, ideal for sites where space is an issue. The TS1200 series have two passage channels in one casework, it is cost-effective for the application.
On receiving a signal from the access control system, or push button, it allows the passage of one person at a time. Passage in both directions is electronically controlled. Default mode is to lock the mechanism until a valid authorization signal is received. If you want to set one side free, you can have it by adjusting the mechanism. In case of emergency, the horizontal arm will drop to allow free passage.
| Technical Specifications | |
|---|---|
Power Supply |
AC 220V/110V, 50/60Hz |
Operating Temperature |
-28 °C- 60 °C |
Operating Humidity |
5%-85% |
Working Environment |
Indoor/Outdoor(shelter) |
Rated Power |
120W |
Flow Rate |
25- 48 passage/minute |
Casework Material |
SUS304 |
Pictogram Indication |
Yes |
Control System |
Input controlled by dry contact |
Emergency Button Input |
Yes |
Dimension |
60×98×33(CM) + arm length 50CM |
Package Dimension |
73×108×45(CM) |
Net Weight |
55KG |
Gross Weight with Package |
63KG |
Optional Function |
Alternative material or shape, third-party access control integration, ticket system integration, passage counter |
Tripod turnstiles are compact and cost-effective entrance solutions. Designing for smooth and silent operation, reducing power consumption, wear and tear. It is suitable for areas with a high traffic.
The TS1200 series, our stainless steel compact version, offer high operating reliability in a small casework, ideal for sites where space is an issue. The TS1200 series have two passage channels in one casework, it is cost-effective for the application.
On receiving a signal from the access control system, or push button, it allows the passage of one person at a time. Passage in both directions is electronically controlled. Default mode is to lock the mechanism until a valid authorization signal is received. If you want to set one side free, you can have it by adjusting the mechanism. In case of emergency, the horizontal arm will drop to allow free passage.
| Technical Specifications | |
|---|---|
Power Supply |
AC 220V/110V, 50/60Hz |
Operating Temperature |
-28 °C- 60 °C |
Operating Humidity |
5%-85% |
Working Environment |
Indoor/Outdoor(shelter) |
Rated Power |
120W |
Flow Rate |
25- 48 passage/minute |
Casework Material |
SUS304 |
Pictogram Indication |
Yes |
Control System |
Input controlled by dry contact |
Emergency Button Input |
Yes |
Dimension |
60×98×33(CM) + arm length 50CM |
Package Dimension |
73×108×45(CM) |
Net Weight |
55KG |
Gross Weight with Package |
63KG |
Optional Function |
Alternative material or shape, third-party access control integration, ticket system integration, passage counter |
Tripod turnstiles are compact and cost-effective entrance solutions. Designing for smooth and silent operation, reducing power consumption, wear and tear. It is suitable for areas with a high traffic.
The TS2100 series offer a slim, two-legged casework made of stainless steel, ideal for sites where a high traffic and space are issued
By receiving a signal from the access control system, or pushing button, it allows the entry of one person in a time. The status is shown on the led-way mode indicators on the top. Entering into different directions are electronically controlled. Default mode is to lock the mechanism until a valid authorization signal is received. If you want to set one side free, you can have it by adjusting the mechanism. In case of emergency, the horizontal arm will drop to allow free passage. Led way mode indicators are included as standard.
| Technical Specifications | |
|---|---|
Power Supply |
AC 220V/110V, 50/60Hz |
Operating Temperature |
-28 °C- 60 °C |
Operating Humidity |
5%-85% |
Working Environment |
Indoor/Outdoor(shelter) |
Rated Power |
60W |
Flow Rate |
25- 48 passage/minute |
Casework Material |
SUS304 |
Pictogram Indication |
Yes |
Control System |
Input controlled by dry contact |
Emergency Button Input |
Yes |
Dimension |
111×98×18(CM) + arm length 50CM |
Package Dimension |
120×108×28(CM) |
Net Weight |
45KG |
Gross Weight with Package |
53KG |
Optional Function |
Alternative material or shape, third-party access control integration, ticket system integration, passage counter |
Tripod turnstiles are compact and cost-effective entrance solutions. Designing for smooth and silent operation, reducing power consumption, wear and tear. It is suitable for areas with a high traffic.
The TS2200 series offer a well-designed, two-legged casework made of stainless steel, ideal for sites where a high traffic and robustness are issued. The TS2200 series have two passage channels in one casework, it is cost-effective for the application.
By receiving a signal from the access control system, or pushing button, it allows the entry of one person in a time. The status is shown on the led-way mode indicators on the top. Entering into different directions are electronically controlled. Default mode is to lock the mechanism until a valid authorization signal is received. If you want to set one side free, you can have it by adjusting the mechanism. In case of emergency, the horizontal arm will drop to allow free passage. Led way mode indicators are included as standard.
| Technical Specifications | |
|---|---|
Power Supply |
AC 220V/110V, 50/60Hz |
Operating Temperature |
-28 °C- 60 °C |
Operating Humidity |
5%-85% |
Working Environment |
Indoor/Outdoor(shelter) |
Rated Power |
120W |
Flow Rate |
25- 48 passage/minute |
Casework Material |
SUS304 |
Pictogram Indication |
Yes |
Control System |
Input controlled by dry contact |
Emergency Button Input |
Yes |
Dimension |
111×98×32(CM) + arm length 50CM |
Package Dimension |
120×108×44(CM) |
Net Weight |
65KG |
Gross Weight with Package |
75KG |
Optional Function |
Alternative material or shape, third-party access control integration, ticket system integration, passage counter |
TS5000A is an automatic tripod turnstile series designed for smooth and silent operation and consumes very little power. TS5000A tripod arms are normally held in a locked position, thus denying access to the secured side. Upon the reader (RFID and/or fingerprint) inTS5000A positively recognizing a user’s valid access card or fingerprint, arms unlock and automatically rotate at a slight push. During emergencies and power outages the tripod arms completely collapse, thereby ensuring users FAST unencumbered exit to safety. When the power is on, the arm will automatically lift up to form a secure lane.
| Input Voltage | AC 100V ~ 240V, 50Hz ~ 60Hz | Max Tolerance of Arms(kg) | Center: 80 End: 40 |
| Rated Power(W) | 60 | Drive Mode | Motorized |
| Operating Environment | Indoor and Outdoor (shelter) | Arm Length (mm) | 500 |
| Operating Temperature | -28ºC ~ 60ºC | Net Weight（kg） | 60 |
| Operating Humidity | 5% ~ 80% | Package Weight（kg） | 90 |
| Flow Rate | 30 passages / minute | Dimensions | L = 1200, W = 300, H = 1010 |
| Input Control Signal | Dry contact | Package Size (mm) | L =1330 , W =420 , H =1110 |
The FBL4000 is a single lane flap barrier turnstile series designed for smooth and silent operation and draws very little power. It’s made of stainless steel which makes FBL4000 highly durable.
| Power requirements | AC 100 ~ 120V/200 ~ 240V, 50/60Hz | |
| Working temperature | -28℃~60℃ | |
| Working humidity | 5%~80% | |
| Working environment | Indoor/outdoor (if sheltered) | |
| Speed of throughput | RFID | Maximum 30/ minute |
| Fingerprint | Maximum 25/ minute | |
| Lane width(mm) | 600 | |
| Footprint(mm*mm) | 1350*1200 | |
| Dimensions(mm) | L=1350,W=300,H=1010 | |
| Dimension with packing(mm) | L=1500,W=840,H=1100 | |
| Net weight(kg) | 142 | |
| Weight with packing(kg) | 211 | |
| LED indicator | Y | |
| Cabinet material | SUS304 Stainless Steel | |
| Lid material | SUS304 Stainless Steel | |
| Barrier material | Acrylic | |
| Barrier movement | Retracting | |
| Emergency mode | Y | |
| Security level | Medium | |
| MCBF | 2 million | |
The ZKTeco FBL5000 single lane flap barrier turnstile is an elegant cost-effective entrance control system designed for high-traffic volume.
| Power requirements | AC 100 ~ 120V/200 ~ 240V, 50/60Hz | |
| Working temperature | -28℃~60℃ | |
| Working humidity | 5%~80% | |
| Working environment | Indoor/outdoor (if sheltered) | |
| Speed of throughput | RFID | Maximum 30/ minute |
| Fingerprint | Maximum 25/ minute | |
| Lane width(mm) | 600 | |
| Footprint(mm*mm) | 1200*1200 | |
| Dimensions(mm) | L=1200,W=300,H=1010 | |
| Dimension with packing(mm) | L=1400,W=840,H=1100 | |
| Net weight(kg) | 126 | |
| Weight with packing(kg) | 196 | |
| LED indicator | Y | |
| Cabinet material | SUS304 Stainless Steel | |
| Lid material | SUS304 Stainless Steel | |
| Barrier material | Acrylic | |
| Barrier movement | Retracting | |
| Emergency mode | Y | |
| Security level | Medium | |
| MCBF | 2 million | |
PB4000
PB4130
PB4030-LED
ไม้กั้น ZKTeco รุ่น PB4000 เหมาะสำหรับใช้กับงานที่จอดรถยนต์และการควบคุมความปลอดภัย
ผลิตภัณฑ์ไม้กั้นของ ZKTeco ใช้สำหรับที่จอดรถยนต์ อุปกรณ์ใช้งานได้อย่างยาวนาน สามารถเชื่อถือได้และมีคุณภาพในการผลิตอุปกรณ์ได้มาตรฐาน นอกจากนั้นการออกแบบโครงสร้างพิเศษและกระทัดรัดป้องกันฝุ่นและป้องกันน้ำได้
คุณสมบัติ
>อุปกรณืได้รับการออกแบบอย่างกระทัดรัดด้วยวัสดุจากอะลูมิเนียมเคลือบผงสารเคมีที่ช่วยป้องกันการกัดกร่อนได้
>ออกแบบโครงสร้างเพื่อกให้เหมะกับการขนส่งอุปกรณ์
>ติดตั้งง่าย เพียงยึดอุปกรณ์ไว้กับพื้นและต่อไฟ
| Technical Specifications | |||
|---|---|---|---|
|
Model |
PB4000 |
PB4130 |
PB4030-LED |
|
Boom type |
Telescopic |
90 C folding boom |
Straight boom with LED ligth |
|
Boom length |
3m/6m |
3m |
4m |
|
Opening/closing time |
3s/6s |
3s |
3s |
|
Supply Voltage |
110V AC or 220V AC |
110V AC or 220V AC |
110V AC or 220V AC |
|
Power consunsumption |
120W |
120W |
120W |
|
Frequency |
50-60Hz |
50-60Hz |
50-60Hz |
|
Net weigth |
60kg |
60kg |
60kg |
|
Gross weigth |
70kg |
70kg |
70kg |
|
Cabinet meterial |
Powder coated steel |
Powder Coated steel |
Powder Coated steel |
|
Boom material |
Aluminum alloy |
Aluminum alloy |
Aluminum alloy |
|
Working temperature range |
-20c - +60c |
-20c - +60c |
-20c - +60c |
|
Working humidity range |
&≤90% |
≤90% |
≤90% |
|
Housing dimensions |
DxWxH |
DxWxH |
DxWxH |
The ZKTeco SBTL3000 single lane swing barrier turnstile is an elegant cost-effective entrance control system designed for high-traffic volume.
SBTL3000 barriers are normally held in a locked position, thus denying access to the secured side. Upon SBTL3000’s reader (RFID and/or fingerprint) positively recognizing a user’s valid access card or fingerprint, its barriers swing automatically, thus allowing users passage to the secured side.
| Power requirements | AC110V/220v,50/60HZ | |
| Working temperature | -28℃~60℃ | |
| Working humidity | 5%~80% | |
| Working environment | Indoor/Outdoor | |
| Speed of throughput | RFID | Maximum 30/ minute |
| Fingerprint | Maximum 25/ minute | |
| Lane width(mm) | 1,050 | |
| Footprint(mm*mm) | 1570*1500 | |
| Dimensions(mm) | L=1500,W=260,H=1000 | |
| Dimension with packing(mm) | L=1640,W=760,H=1100 | |
| Net weight(kg) | 114 | |
| Weight with packing(kg) | 161 | |
| LED indicator | Y | |
| Cabinet material | SUS304 Stainless Steel | |
| Lid material | SUS304 Stainless Steel | |
| Barrier material | SUS304 Stainless Steel | |
| Barrier movement | Swing | |
| Emergency mode | Y | |
| Security level | Medium | |
| MCBF | 2 million | |
The ZKTeco SBTL3200 swing barrier turnstile for additional lane is an elegant cost-effective entrance control system designed for high-traffic volume.
The SBTL3200 series should work together with SBTL2000 series to build multiple lanes.
| Power requirements | AC110V/220v,50/60HZ | |
| Working temperature | -28℃~60℃ | |
| Working humidity | 5%~80% | |
| Working environment | Indoor/Outdoor | |
| Speed of throughput | RFID | Maximum 30/ minute |
| Fingerprint | Maximum 25/ minute | |
| Lane width(mm) | 1,050 | |
| Footprint(mm*mm) | 1250*1500 | |
| Dimensions(mm) | L=1500,W=260,H=1000 | |
| Dimension with packing(mm) | L=1640,W=400,H=1110 | |
| Net weight(kg) | 66 | |
| Weight with packing(kg) | 98 | |
| LED indicator | Y | |
| Cabinet material | SUS304 Stainless Steel | |
| Lid material | SUS304 Stainless Steel | |
| Barrier material | SUS304 Stainless Steel | |
| Barrier movement | Swing | |
| Emergency mode | Y | |
| Security level | Medium | |
| MCBF | 2 million | |
