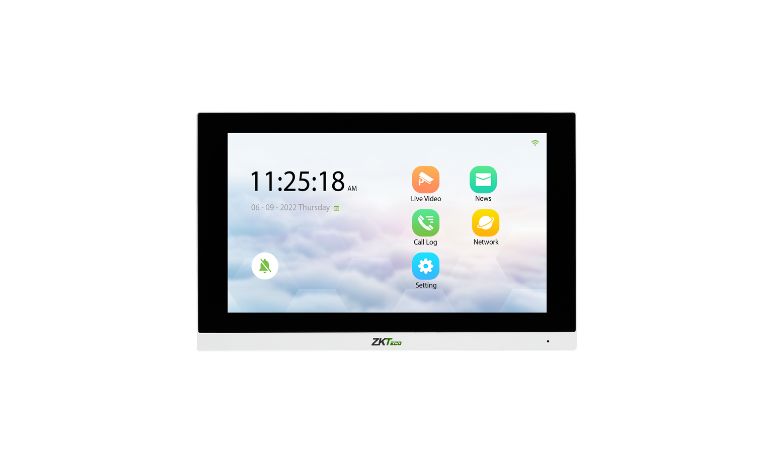

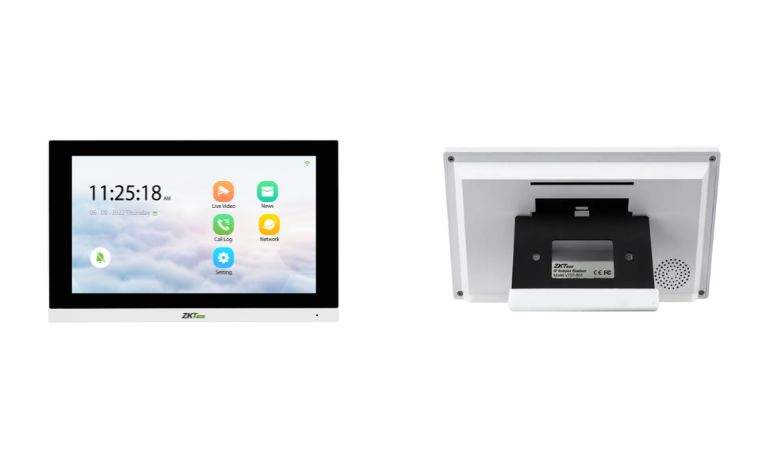

The VT07-B01 is a Linux-based video intercom system suitable for apartment and office buildings. It features a 7-inch LCD touchscreen and a wide range of functions, including audio and video intercom communication, support for communication between external stations and internal monitors via TCP/IP, and the ability to control main door opening. Furthermore, the VT07-B01 can integrate with access control systems to combine access control functions with the video intercom system.
| Technical Specifications | |
|---|---|
| OS | Linux System |
| DDR | 2G |
| Flash | 1G |
| Display | 7 LCD touch screen 1024*768 |
| Video Display | Support 4 channel video display/ full screen |
| Wired Network/Wireless Network | Support RJ45 network port/IEEE 802.11b / g / n (optional) |
| TF card slot | Support up to 128GB micro TF card |
| Network Interface | RJ45 Network Port |
| Power | DC12V 2A |
| Operating Temperature | -10c to 55c |
| Dimensions(W*H*D) | 185*117*22 mm |
| Weight | 410g |
| Certifications | CE, FCC |

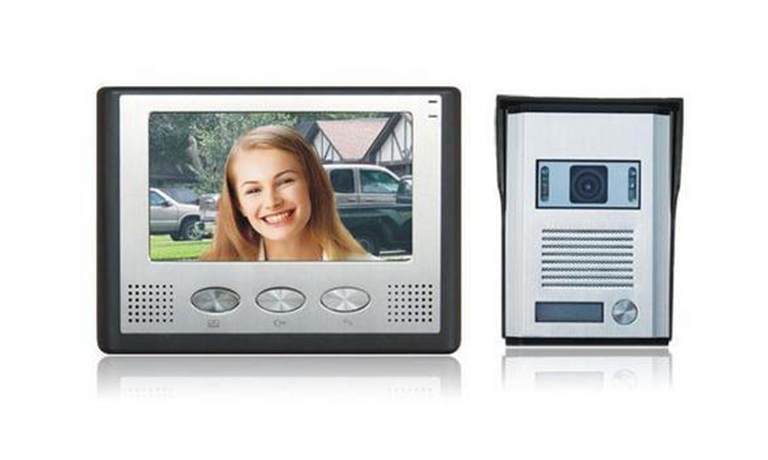

Product Material: High-grade ABS
Product Color: white face plate
Product Feature: converse, intercom, monitor, unlocking, ringtone option
etc.
confidentiality converse, good compatibility, Slave unit comes with encoder for easy coding and can be
integrated with building or villa system. 25 ringtones for choice, good tone quality, mated connector for
slave unit, easy for installation by user.
Product Specification:
7” TFT LCD
Working Voltage: DC18V +- 10%
Conversation Time: 90 seconds
Static Current: <=20 mA
Working Current: <=600mA
Ringing time: 30 seconds
Working humidity: 10% - 90%
Working Temperature: -40 C – 60 C
Installation method: wall-hung
Dimension: 245x150x20mm
Product Material: High-grade brushed finish Aluminum face plate
Product Color: silver face plate
Product Feature: Interconnected host unit can connect with 999 indoor unit,
LED display (LCD is option). Suitable for multi-floor or high-rise building. Can integrated with ID or IC
Access Control system for remote unlocking function. Short circuit protection function.
LED of the host unit will show the error type in case malfunction. Good compatibility, easy installation. Can
work with un-visual intercom, B/W or color indoor unit. Host unit comes with built-in infrared CCD camera for
clear image.
Product Specification:
Working Current: <=300mA
Audio output: 50mV
Working Voltage: DC18V +- 10%
Conversation Time: 90 seconds
Static Current: <=160 mA
Video transfer distance: 75-5, 250M without amplifier
Video line: 420 TV Line
Visual angle: 98 degree
Installation dimension: 347x127x40mm
Dimension: 366x138.5x55mm
Applicable Model: SAT11-6C-VM50, SAT11-6H-VM50,
SAT11-2C-VM50, SAT11-2H-VM50,
| Technical Specifications | |
|---|---|
| Input voltage | 100V-240V,50/60Hz |
| Working temperature | -20℃～+50℃ |
| External Dimensions | 2220mm(H)*930mm(W)*760mm(D) |
| Channel Dimensions | 2010mm(H)*760mm(W)*760mm(D) |
| Package Dimensions | 2300mm(H)*335mm(W)*800mm(D) |
| Gross weight | 70kg |
