ZKTeco C3-400
ZKTeco C3-200
ZKTeco C3-100
ZKAccess Systems are built on flexible, open technology to provide management, real-time monitoring , and control of your access control system-all from a browser, with no additional software to install.
Our secure Web-hosted infrastructure and centralized online administration reduce your IT costs and allow you to easily manage all of your access points in a single location. C3 series' versatile design features take care of present and future needs with ease and efficiency. It is one of the most rugged and reliable controllers on the market, with a multitude of built-in features.
The C3 series control panle can communicate at 38.4 Kbps via RS-485 configuration or Ethernet TCP/IP networks. It can store up to 30,000 cardholders. SDK (Software Development Kit) is available for the customer to integrate the controller into existing access control software or to develop new software.
| Technical Specifications | |||
|---|---|---|---|
| Number of Doors Controlled | 1 Door | 2 Door | 4 Door |
| Number of Readers Supported | 2 | 4 | 4 |
| Types of Readers Supported | 26-bit Wiegand, others upon request | 26-bit Wiegand, others upon request | 26-bit Wiegand, others upon request |
| Number of Inputs | 2 (Exit Device and Door Status, AUX) | 6 (2 Exit Device, 2 Door Status, 2 AUX) | 12 (4 Exit Device, 4 Door Status, 4 AUX) |
| Number of Outputs | 2 (1-From C Relay for Lock and 1-Form C Relay for Aux Output) | 4 (2-From C Relay for Lock and 2-Form C Relay for Aux Output) | 8 (4-Form C Relay for Lock and 4-Form C Relay for Aux Output) |
| Card Holders Capacity | 30,000 | 30,000 | 30,000 |
| Log Events Capacity | 100,000 | 100,000 | 100,000 |
| Weight | 7.4lbs (3.35kg) | 7.5lbs (3.4kg) | 7.8lbs (3.55kg) |
| Communication | TCP/IP, RS-485 and WiFi optional | TCP/IP, RS-485 and WiFi optional | TCP/IP, RS-485 and WiFi optional |
| Enclosure | Powder Coated Aluminium | Powder Coated Aluminium | Powder Coated Aluminium |
| Mounting | Wall Mount | Wall Mount | Wall Mount |
| Recommended Power Supply | 12V DC, 1.5A | 12V DC, 1.5A | 12V DC, 1.5A |
| Dimensions (Bundle Only) |
15in.×3.15in.×11in. 380mm(L) X 80mm(W) X 280mm(H) |
15in.×3.15in.×11in. 380mm(L)×80mm(W)×280mm(H) |
15in.×3.15in.×11in. 380mm(L)×80mm(W)×280mm(H) |
| Dimensions ( Board Only) |
6.3in.×4.17in. (160mm×106mm) |
6.3in.×4.17in. (160mm×106mm) |
6.3in.×4.17in. (160mm×106mm) |
ZKTeco C5S-140
ZKTeco C5S-120
ZKTeco C5S-110
Choice of Readers : Support all card readers, such as ZK KR-series, Wiegand readers, and RS485 card readers; it also supports HID Prox, iClass, and XceedID multi-card technology.
Communication : C5S control panel can be installed easily onyour network and support TCP/IP, RS485, and Wi-fi communications. POE function (AT standard) will assist in easier and more convenient installation.
New Design : The new design is different from the C3 controller. There is a case protecting the C5S controller.
Capacity : Support up to 100,000 users and store up to 200,000 events and transactions. Data is preserved if power is lost. The controller will continue to operate if the network connection is interrupted. More than Access Control. After programming, auxiliary relays can be served as lights, alarms and intrusion detection panels. Extra locking devices or gate controllers can be accessed.
Options : There are 3 sizes to suit project needs and reduce the cost of unused capacity. 1-door, 2-door, and 4-door models can be mixed and matched in optimized system architecture, devices or gate controllers.
Built-In Advanced Access Control : Anti-passback, First-card opening, Multi-card opening, Duress password entry, and auxiliary input/output linkages are built into controller firmware.
For Software Developers : Free SDK is available for integrators and OEM’s to integrate the C5S controller with their or existing security or personnel management applications. Upon request, ZK can customize C5S firmware to meet any customer requirements.
| Technical Specifications | |||
| C5S110 | C5S120 | C5S140 | |
| Number of Doors Controlled | 1 | 2 | 4 |
| Number of Readers Supported | Wiegand reader: 2 | Wiegand reader: 4 | Wiegand reader: 4 |
| RS485 reader: 2 | RS485 reader: 4 | RS485 reader: 8 | |
| Types of Readers Supported | 26-bit Wiegand, others upon request | ||
| Number of Inputs | 3 | 5 | 9 |
| Exit Button: 1 | Exit Button: 1 | Exit Button: 1 | |
| Aux IN: 1 | Aux IN: 1 | Aux IN: 1 | |
| Door Status: 1 | Door Status: 2 | Door Status: 4 | |
| Number of Outputs | 2 | 3 | 5 |
| Lock: 1 | Lock: 2 | Lock: 4 | |
| Aux Output: 1 | Aux Output: 1 | Aux Output: 1 | |
| Hardware | CPU: 1.2GHz | CPU: 1.2GHz | CPU: 1.2GHz |
| Flash: 256Mb | Flash: 256Mb | Flash: 256Mb | |
| RAM: 128Mb | RAM: 128Mb | RAM: 128Mb | |
| Card Holders Capacity | 100000 | 100000 | 100000 |
| Log Events Capacity | 200000 | 200000 | 200000 |
| Communication | TCP/IP and RS-485, WI-FI | TCP/IP and RS-485, WI-FI | TCP/IP and RS-485, WI-FI |
| Mounting | Wall Mount | Wall Mount | Wall Mount |
| Recommended Power Supply | 12V DC, 1.5A | 12V DC, 1.5A | 12V DC, 1.5A |
| Dimensions (L*W*H) | 160 x 140 x 31.6mm | 197 x 171 x 31.6mm | 197 x 171 x 31.6mm |
| Operating Temp | -10 ~ 50°C | -10 ~ 50°C | -10 ~ 50°C |
| Operating Humidity | 20% ~ 80% | 20% ~ 80% | 20% ~ 80% |

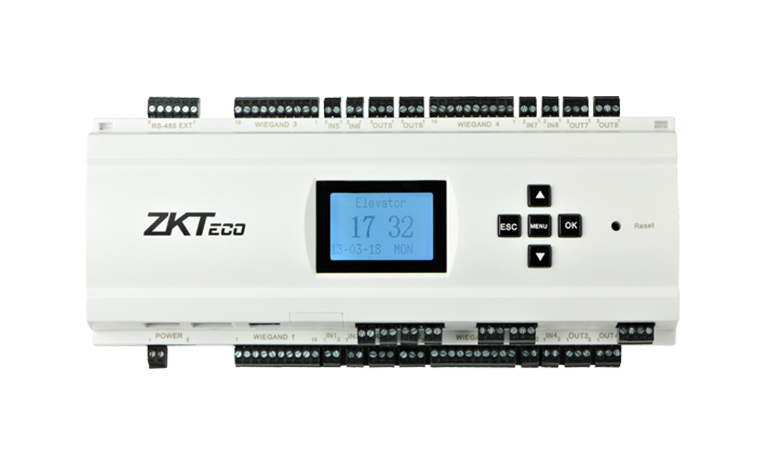

Designing specifically for elevator control, the EC10 panel and EX16 floor extension boards provide customers with the most secured, scalable, versatile and affordable access control solutions available today.
Floor access can be restricted based on various user credentials, including fingerprint, proximity card and/or password. Pre-defined time schedules can also be used to control floor access. During normal visits/business hours, unrestricted floor access can also be permitted (aka Passage mode).
The EC10 Elevator Control Panel can restrict access up to ten floors. The EX16 Elevator Floor Extension Board restricts access up to an additional sixteen floors. Each EC10 can support up to three EX16 boards. When combining together, a total fifty eight (58) floors can be controlled with a single EC10 bundle. Note EC10 panels can be daisy-chained together to control as many floors as desired.
Our powerful yet easy to use software makes the Elevator Control System very easy to manage. SDK is available for software companies which desire to integrate with the system.
| Technical Specifications | |
|---|---|
| Model | EC10 |
| Floor Button Control Relay | 10 |
| Fingerprint Capacity | 3000 |
| RFID Card Capacity | 30,000 |
| Event Capacity | 100,000 |
| Power Supply | 12V DC 1A |
| Communication to PC | TCP/IP, RS485 |
| Communication to EX16 | RS485 |
| Number of supported EX16 | 3 |
| Dimension(L×D×H) | 242mm×95mm×60mm |
| Net weight | 0.8Kg |
| Model | EX16 |
| Floor Button Control Relay | 16 |
| Communication to EC10 | RS485 |
| RS485 address | Set by DIP switch |
| Power Supply | 12V DC 1A |
| Dimension (L×D×H) | 160mm×106mm |
| Net weight | 0.2Kg |
Designing specifically for elevator control, the EC10 panel and EX16 floor extension boards provide customers with the most secured, scalable, versatile and affordable access control solutions available today.
Floor access can be restricted based on various user credentials, including fingerprint, proximity card and/or password. Pre-defined time schedules can also be used to control floor access. During normal visits/business hours, unrestricted floor access can also be permitted (aka Passage mode).
The EC10 Elevator Control Panel can restrict access up to ten floors. The EX16 Elevator Floor Extension Board restricts access up to an additional sixteen floors. Each EC10 can support up to three EX16 boards. When combining together, a total fifty eight (58) floors can be controlled with a single EC10 bundle. Note EC10 panels can be daisy-chained together to control as many floors as desired.
Our powerful yet easy to use software makes the Elevator Control System very easy to manage. SDK is available for software companies which desire to integrate with the system.
| Technical Specifications | |
|---|---|
| Model | EX16 |
| Floor Button Control Relay | 10 |
| Fingerprint Capacity | 3000 |
| RFID Card Capacity | 30,000 |
| Event Capacity | 100,000 |
| Power Supply | 12V DC 1A |
| Communication to PC | TCP/IP, RS485 |
| Communication to EX16 | RS485 |
| Number of supported EX16 | 3 |
| Dimension(L×D×H) | 242mm×95mm×60mm |
| Net weight | 0.8Kg |
| Model | EX16 |
| Floor Button Control Relay | 16 |
| Communication to EC10 | RS485 |
| RS485 address | Set by DIP switch |
| Power Supply | 12V DC 1A |
| Dimension (L×D×H) | 160mm×106mm |
| Net weight | 0.2Kg |
ZKTeco inBio-460
ZKTeco inBio-260
ZKTeco inBio-160
InBio carries out the matching of fingerprints on the panels. The FR Series of readers transmit fingerprint templates to InBio via RS-485 for fast and accurate matching with templates stored in a data-base. InBio controllers install easily on your network and support both TCP/IP and RS-485 communication. Auto-discovery tool allows setting and modi cation of network parameters directly and easily.
InBio controller firmware can be upgraded in the field. Stores up to 3,000 fingerprint templates, 30,000 card users, and up to 100,000 events and transactions. Controller is backed up in real-time in on-board SD card. Data is preserved if power is lost. InBio continues to opperate if network conection is interrupted. Along with relay contacts for controlling door locks, easily programmable auxilary relays can be used for additional control and interface to lights, alarms, annunciators, intrusion detection panels, or even extra locking devices or gate controllers.
InBio controllers come in three sizes to suit project needs and reduce the cost of unused capacity. 1-door, 2-door, and 4-door models can be mixed and matched in an optimized system architecture. Anti-Passback, First-Card Opening, Multi-Card Opening, Duress Password Entry, and Auxilary Input/Output Linkages are built into controller firmware.
Free SDK is available for integrators and OEM’s to integrate the InBio controllers with their or existing security or personnel management applications. Upon request, ZK can also customize InBio firmware to meet any custom requirements.
| Technical Specifications | |||
|---|---|---|---|
| Number of Doors Controlled | 1 Door | 2 Door | 4 Door |
| Number of Readers Supported | 2 | 4 | 4 |
| Types of Readers Supported | 26-bit Wiegand, others upon request | 26-bit Wiegand, others upon request | 26-bit Wiegand, others upon request |
| Number of Inputs | 2 (Exit Device and Door Status, AUX) | 6 (2 Exit Device, 2 Door Status, 2 AUX) | 12 (4 Exit Device, 4 Door Status, 4 AUX) |
| Number of Outputs | 2 (1-From C Relay for Lock and 1-Form C Relay for Aux Output) | 4 (2-From C Relay for Lock and 2-Form C Relay for Aux Output) | 8 (4-Form C Relay for Lock and 4-Form C Relay for Aux Output) |
| Card Holders Capacity | 30,000 | 30,000 | 30,000 |
| Log Events Capacity | 100,000 | 100,000 | 100,000 |
| Weight | 7.4lbs (3.35kg) | 7.5lbs (3.4kg) | 7.8lbs (3.55kg) |
| Communication | TCP/IP, RS-485 and WiFi optional | TCP/IP, RS-485 and WiFi optional | TCP/IP, RS-485 and WiFi optional |
| Enclosure | Powder Coated Aluminium | Powder Coated Aluminium | Powder Coated Aluminium |
| Mounting | Wall Mount | Wall Mount | Wall Mount |
| Recommended Power Supply | 12V DC, 1.5A | 12V DC, 1.5A | 12V DC, 1.5A |
| Dimensions (Bundle Only) |
15in.×3.15in.×11in. 380mm(L) X 80mm(W) X 280mm(H) |
15in.×3.15in.×11in. 380mm(L)×80mm(W)×280mm(H) |
15in.×3.15in.×11in. 380mm(L)×80mm(W)×280mm(H) |
| Dimensions ( Board Only) |
6.3in.×4.17in. (160mm×106mm) |
6.3in.×4.17in. (160mm×106mm) |
6.3in.×4.17in. (160mm×106mm) |
ZKTeco inBio-160 Pro
ZKTeco inBio-260 Pro
ZKTeco inBio-460 Pro
ZKTeco inBio-460 Pro Package B
InBio Pro Series is a project oriented high-end product line with unique features such as embedded fingerprint verification and advanced access control functions, which can be managed by TCP/IP communication thru LAN or WAN networks.
The InBio Pro Series are the perfect match for ZKBioSecurity web based software platform to provide a full featured biometric security solution.
In combination with the FR1300 RS485 reader, the panels can authenticate users under multiple verification modes such as fingerprint, card and password for a higher security level.
| Technical Specifications | |||
|---|---|---|---|
|
|
InBio-160 | InBio-260 | InBio-460 |
| Number of doors controller | 1 Door | 2 Door | 4 Door |
| Numbers of readers supported | 4(2 RS-485 Reader,2 26-bit wiegand reader) | 8(4 RS-485 Reader,4 26-bit wiegand reader) | 12(8 RS-485 Reader,4 26-bit wiegand reader) |
| Types of readers supported | 26-bit Wiegand and RS485 FR Series Reader | 26-bit Wiegand and RS485 FR Series Reader | 26-bit Wiegand and RS485 FR Series Reader |
| Number of Inputs | 3(Exit button and Door Status, 1 AUX) | 6(2 Exit button, 2 Door Status, 2 AUX) | 12(4 Exit button, 4 Door Status, 4 AUX) |
| Number of Outputs | 2 (1-Form C Relay for Lock and One Form C Relay for Aux Output) | 4 (2-Form C Relay for Lock and 2-Form C Relay for Aux Output) | 8 (4-Form C Relay or Lock and 4-Form C Relay for Aux Output) |
| Card holders Capacity | 60,000 | 60,000 | 60,000 |
| Fingerprint Capacity | 20,000 | 20,000 | 20,000 |
| Log Events Capacity | 100,000 | 100,000 | 100,000 |
| Communication | TCP/IP | TCP/IP | TCP/IP |
| Package Dimension | 350(L)×90(H)×300(W)mm | 350(L)×90(H)×300(W)mm | 350(L)×90(H)×300(W)mm |
| Package Weight | 3.6kg | 3.6kg | 3.7kg |
| CPU | 32 bit 1.2GHz CPU | 32 bit 1.2GHz CPU | 32 bit 1.2GHz CPU |
| RAM | 128MB | 128MB | 128MB |
| Flash Memory | 256MB | 256MB | 256MB |
| Power | 9.6V-14.4V DC | 9.6V-14.4V DC | 9.6V-14.4V DC |
| Operating Temp | 0-45 °C | 0-45 °C | 0-45 °C |
| Operating Humidity | 20% to 80% | 20% to 80% | 20% to 80% |
